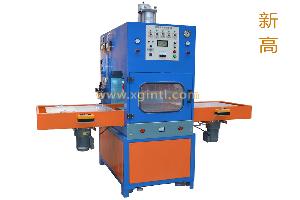

XG-automatic slide frequency synchronous fusing machine

Clicks:Updated:2013-06-20【Print】【Close】

  • Details
  • Wholesale
  • Shipping
  • Transactions
  • Contact

Machine features:
1 high-cycle output is stable and reliable, 10 tons -35 tons of air hydraulic pressurization device, welding, cutting once OK, fast and accurate;
2.NL-5557 high sensitivity spark protection circuit can automatically cut off frequency, inhibition Sparks;
3. frequency frequency stabilizer and high frequency shielding devices, the high-frequency interference to a minimum;
4 with four-point system and manually adjust the die slot-mounted mode structure, loading mode for quick and easy bit;
5 Automatic over-current protection system, increasing the life of vacuum tubes protect the mold;
6 cylinder imported from Taiwan, ensuring long-term high-precision movement;
seven full set of high-quality imported electronic components assembly, quality, performance and stability. Uses: ◆ the same time fuse automotive synthetic leather chairs, sun visor, mobile phone sets, computer sets, door armrests. Du fittings, trademarks, watches, belts, CD bags. ◆ APET, PET, PETG environmentally friendly materials double blister packaging. ◆ APET, PETG, PET, PP environmental protection material folding box pressure line trimming, toothbrush / dental floss, plastic elevator packaging, paper card plastic synchronization blown, pressed leather lace synthetic fabrics, blown and cut a variety of materials simultaneously, you can save a complicated process. Technical Specifications:






Model

XG-5KW

XG-8KW

High Cycle Output

5000W

8000W

Input Voltage

AC380v, 3 ∮, three-phase five-wire

Input Power

8KVA

15KVA

Oscillation frequency

27.12MHz

Rectifiers

Silicon diode

Oscillating tube

 7T85RB

7T69RB

Maximum pressure

10T

15T

Table size

300 * 460mm

400 * 500mm

Activities distance

150mm

150mm

Time adjustment

0-10s adjustable

0-10s adjustable

Sparkproof thyristor spark tube

NL-5557

Compression method

Empty direct-acting hydraulic

Gap of Electrodes

250mm
