Fusing machine (automatic)

Clicks:Updated:2013-06-28【Print】【Close】

  • Details
  • Wholesale
  • Shipping
  • Transactions
  • Contact

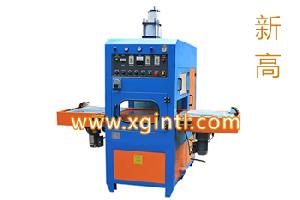

XG-8000S automatic slide fusing machines

Product Features:

◎ output stable and reliable high-cycle, 10 tons -35 tons of air hydraulic pressurization device, welding,

Cut once OK, fast and accurate;

◎ NL-5557 high sensitivity spark protection circuit can automatically cut off the high frequency suppress sparks;

◎ frequency frequency stabilizer and high frequency shielding devices, the high-frequency interference to a minimum;

◎ manually adjust a four-point system and the slot-mounted mold mold structure, the loading mode for quick and easy bit;

◎ Automatic over-current protection system, increasing the service life of vacuum tubes to protect the mold;

◎ Taiwan imported cylinders, ensure long-term high-precision movement;

◎ full quality imported electronic components assembly, quality, performance and stability.

Purpose:

◎ same time fuse automotive synthetic leather chairs, sun visor, mobile phone sets, computer sets, kitchen knives, door armrests.

◎ footwear accessories, trademarks, watches, belts, CD bags.

◎ APET, PET, PETG environmentally friendly materials double blister packaging.

◎ APET, PETG, PET, PP environmental protection material folding box pressure line trimming, toothbrush / dental floss.

◎ plastic elevator packaging, paper card plastic synchronization blown, pressed leather lace synthetic fabrics.

◎ same time fuse and cut a variety of materials, eliminating the need for complicated processes.

Technical Specifications:





Model

XG-5KW

XG-8KW

High Cycle Output

5000W

8000W

Input Voltage

AC380v, 3 ∮, three-phase five-wire

Input Power

8KVA

15KVA

Oscillation frequency

27.12MHz

Rectifiers

Silicon diode

Oscillating tube

 7T85RB

7T69RB

Maximum pressure

10T

15T

Table size

300 * 460mm

400 * 500mm

Activities distance

150mm

150mm

Time adjustment

0-10s adjustable

0-10s adjustable

Sparkproof thyristor spark tube

NL-5557

Compression method

Empty direct-acting hydraulic

Gap of Electrodes

250mm
