Mask machine Applicable industries:

　　Disposable medical protective equipment

　　Product configuration and characteristics:

　　(1) The device uses ultrasonic welding mask body elastic band on the outside of fusion is the last one ear masks production process.

　　(2) The operator is only one piece of the mask body mask placed on the tray, follow-up action to the complete automatic operation by the device.

　　(3) The equipment production with a machine than the average ear height. Production processes include: Import body blade, sideband feeding, edging, sideband welding, cutting edge band, elastic band cut / weld, full automation features: small size, small footprint, aluminum structure, beautiful and strong does rust.

　　(4)plc programming control, high degree of automation. Photodetector material, to avoid mistakes reduce waste.High stability, low failure rate.

　　Device parameters (for reference only):

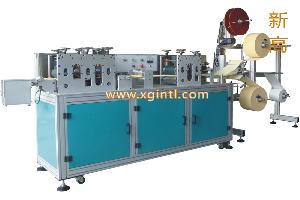

　　Machine Name: Automatic external ear a little welder

　　Model: XG

　　Material: PU or polyester headband with

　　Voltage: 220V/50-60HZ

　　Weight: 1500KG

　　Dimensions: 3800 (L) * 1300 (W) * 1800 (H) (MM)

　　Drive: servo motor and belt

　　Electric control: Mitsubishi

　　Control panel: human-machine interface (touch screen)

　　Specifications: 175mm x 95mm

　　Efficiency :40-60pcs / min

　　Suitable material: polyester Ear
