I. Overview:

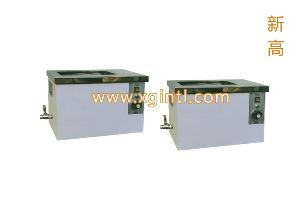

　　XG-C1006 ultrasonic cleaning equipment. Mainly imported high-quality parts and imported SUS304 # stainless steel production and processing, production. While using the most advanced ultrasonic frequency line, Fm-3 FM technology, integrated design, the power module output, stable, reliable, low repair rate. Also designed theundervoltage lock forehead, overcurrent shutdown protection, three micro-power soft start, automatic frequency tracking. With clean, good quality, high working efficiency advantages. Equipment consists of ultrasonic cylinder, ultrasonic vibration plate, electrical control system.

　　Second, the main parameters:

　　1, the ultrasonic frequency: 28KHz Ultrasonic power: 6PCS * 50W

　　2, Tank Size: L300 * B200 * H200mm

　　3, the outer tank size: L460 * B320 * H450mm

　　Third, the main material composition and functions:

　　1, the ultrasonic generator:

　　① ultrasound transducer imported "HS" vibration head.

　　② The bottom mounted vibrator 6PCS.

　　2, piping systems:

　　① wash tank with a set of draining devices.

　　② discharge line of SUS304 stainless steel tube.

　　3, the rack parts:

　　① integrated whole.

　　② outer sealing plate SUS304δ1.0mm plate.

　　4 cylinder parts:

　　① cylinder imported SUS304δ2.0mm stainless steel plate.

　　② vibrating surface using SUS304δ2.5mm stainless steel.

　　5, the electrical control:

　　① has a fail-safe protection.

　　② electrical control components are made ​​of high quality imported components.
